Faith-online inkjet printer best quality manufacturer

Printing accuracy
Resolution up to 600 × 600DP (longitudinal: 100DP1, 150Dp, 300DP, 600DP | horizontal: 30-600Dp precision adjustment) adjustable printing gray level 1-6
Printing height
The minimum printing speed is 1mm, the maximum printing height is 127mm/one inch, the maximum printing height is 254mm (the best mass distance between the nozzle and the printing surface is 1-2mm)
Printing speed
406 meters / 90DP, 304 meters / 120DP, 240 meters / 150DP, 120 meters / 300DP, 60 meters / 600 DPI (multi-group variable data ultra-high speed 10 should be printed within 10 milliseconds)
Print content
Multi-language characters / GS1 DataMatrix / dynamic trace QR code / barcode / graphics / serial number / date / shift / counter / variable database / network serial real-time dynamic data printing...
Printing material
Carton/Plastic/Metal/Plate/Tube/Stone/Cable/Electronic Components/Auto Parts/Industrial Chemical Packaging/Pharmaceutical Food /Gift Box
Ink type
Food grade, water-based, oily, weak solvent, solvent 42m ink cartridge, large-capacity ink bag continuous ink supply system
Ink color
Black, white, red, yellow, blue, green, invisible, UV (food grade inks of various colors)
Ink cartridge chip
RF|D non-contact chip, automatic identification of ink parameters and recording ink remaining
operating system
Embedded Linux operating system
Main hardware
US TAM3358 industrial grade CPU, US Xilinx Spartan6 industrial grade FPGA, T|J dedicated ASC module
Communication Interface
USB, RS232, TCP/P network port (support network remote centralized control management, symmetric heavy machine / conveyor / pager/ packaging machine / ERP database / drug monitoring code / anti-counterfeiting traceability system)
External interface
Optical Eye / Encoder / Alarm Control Input / Serial Number Transmission / External Serial Number Reset / External Serial Number Update / External Sneeze Information Selection / Flip Reverse Control / Nozzle Port
Nozzle installation
Separate sprinkler installation can be seamlessly assembled with double nozzles, separate nozzles can be separated separately (1.8m link cable) can be equipped with nozzles with anti-collision components
Support language
Support more than 40 countries and regions (Chinese / English / Arabic / Russian / French / Vietnamese / Korean / Burmese /Indonesian / Hindi / Portuguese / Japanese / Spanish / Italian...)
Power parameter
Power adapter 100-240V AC input 30∨4A DC output
Machine material
Industrial grade standard protective body (aviation grade aluminum / industrial grade stainless steel)
Machine specification
Host 202mm*119mm*61.2mm, nozzle group 112mm*79mm*103mm
working environment
Temperature 0-45 ° C / humidity 30-70% Rh
SEND INQUIRY NOW

Faith-online inkjet printer best quality manufacturer

E-mail: sale01@sy-faith.com
Whatsapp/wechat:0086 13080716768
Website: www.sy-faith.com

In this video, I'll show you online inkjet printer best quality manufacturer. It's essential for every to understand how to online inkjet printer best quality manufacturer. Enjoy and subscribe this video!

Want more? Check out my https://www.sy-faith.com

Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production, sales and service. It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person  team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
    The company's products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States, Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers.
  The company's philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology's vision is to become the most professional, caring and trustworthy enterprise in the printing industry.

BE MY FRIEND:
Check my website: https://www.sy-faith.com
Add me on Facebook: https://www.facebook.com/306879870025955
Add me on Youtube: https://www.youtube.com/channel/UCzjMa7hc5TERKFm-U-kH0Cg
Add me on Instagram: https://www.instagram.com/faithlaser/

online inkjet printer best quality manufacturer

please contact us immediately if you are interested in.

#online#inkjet#printer#best#quality#manufacturer#Shenyang#Faith#Laser#ShenyangFaithLaser#bigsize3Dprinter#aadhaarcardmobilenumberupdateonline#3dprinterMGN12#Printablehtvinkjet#directtogarmentprinterreview#ApplyIEConlinelivedemo#inkjetpackagingprinter#inkjetcodingmachine#bestonlinemattress#epsoninkjetprinter

Product Details
Company Profile
Product Introduction
KD210 online inkjet printer, with efficient and flexible dynamic database printing function, supports traceability and anti-counterfeiting system, dynamic database real-time high-speed printing, supports 40 multi-language, powerful GS1 two-dimensional code and bar code function, to meet customer's multiple variable code application requirements . It is widely used in the packaging industry, pipes, profiles and other professional production lines, and is committed to solving your printing problems in an all-round way and providing better services.
Product Details

KD210-1 series code-jet printer is a touch screen high-resolution code-jet machine based on TIJ2.5 (hot foam inkjet) technology
developed by Hewlett-Packard Company of the United States. It has the characteristics of high resolution and high-speed printing.

KD210-1 series jet printer adopts LGCS new control technology, the highest printing speed is 406 m/min per minute. It can be
installed in various packaging lines and production lines for high-resolution printing. The built-in software supports
high-quality text, digital, bar code, pictures and other variable data single printing or group printing. It uses a full Chinese
interface and is easy to operate without single printing. Self-learning, full visual operation interface, flexible operation.
Built-in four-core high-frequency processor, faster and more stable operation.

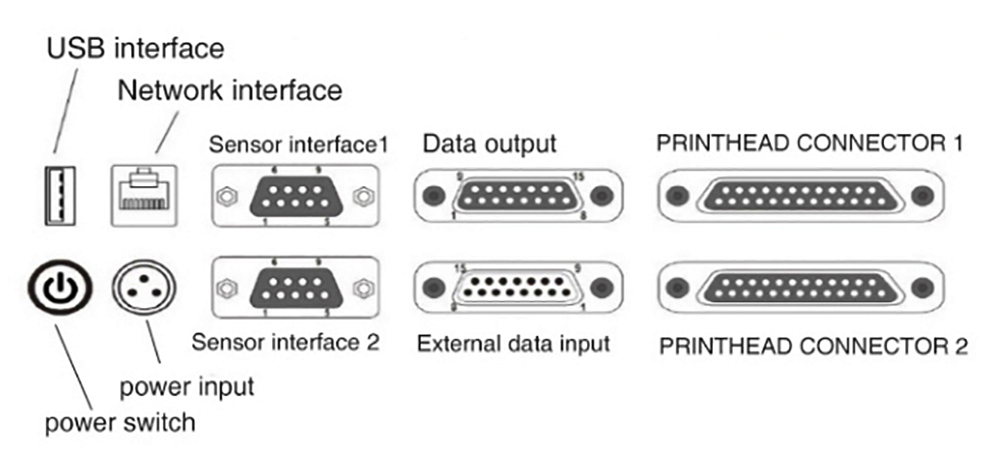

Three kinds of data interfaces, four kinds of information transmission
Interface type: USB, RS232, RJ45.
Users can store picture information (.bmp), text information (.txt/.csv/.xlsx), database, and EXCEL form in a U disk and connect to this machine to print directly.
Smooth operation and stable performance
The product adopts American Texas Instruments AM3358CPU. There will be no lag during use.


Anti-counterfeiting trace data printing
It adopts American TI Company AM3358 industrial grade high performance CPU and American Xilinx Corporation spartan6 industrial high speed operational FPGA.
Print engine uses ASIC chipset for industrial grade TIJ inkjet printer.
PCB adopts anti-interference industrial grade solidstate electronic components SMT manufacturing process.

More powerful software system
With architecture stable and efficient industrial control embedded linux security intelligent operating system.

It can be seamlessly spliced with double nozzles or independently installed with dual nozzles.
1-6 gray scale adjustable to add black inkjet effect.
The cartridge is snap-fitted for simple and reliable.
Multiple optional brackets, different mounting methods.
Supportinglarge capacity consumables and ink bag connection system.
Convenientbutt-joint packaging machine, paging machine and conveyor.
Supporting OEM brand and functional personality customization.

RFQ
Q1: What can printer print?
A1: It can print pictures, numbers, time, months, days, two-dimensional codes, all kinds of patterns.

Q2: Can the inkjet printer of KD210-1 automatic production line connect to the computer?
A2: Sure.it can connect computers , and a computer can connect multiple printers to work together.

Q3: What is the printing speed?
A3: The highest speed of printing is 406 meters per minute.

Q4: What is the printing distance between the printer's print head and material?
A4: Better between 2 and 5 mm.

Q5: Do you have after-sale?
A5: Sure,We have remote technical support 7*24.

Q6: How much capacity does a cartridge have and how many words can it print?
A6: With 42 ML fast-drying ink, a cartridge can print 800,000-1.5 million characters.

Q7: How should I get more videos or details if I need them?
A7: You can get more information from our .customer service.

Q8: Can this mark be erased?
A8: It can not erased by hand,unless use hard tool .

Q9: How long does it take for the ink to dry?
A9: About 3-5 seconds.
