the truth behind inkjet printer

Printing accuracy
Resolution up to 600 × 600DP (longitudinal: 100DP1, 150Dp, 300DP, 600DP | horizontal: 30-600Dp precision adjustment) adjustable printing gray level 1-6
Printing height
The minimum printing speed is 1mm, the maximum printing height is 127mm/one inch, the maximum printing height is 254mm (the best mass distance between the nozzle and the printing surface is 1-2mm)
Printing speed
406 meters / 90DP, 304 meters / 120DP, 240 meters / 150DP, 120 meters / 300DP, 60 meters / 600 DPI (multi-group variable data ultra-high speed 10 should be printed within 10 milliseconds)
Print content
Multi-language characters / GS1 DataMatrix / dynamic trace QR code / barcode / graphics / serial number / date / shift / counter / variable database / network serial real-time dynamic data printing...
Printing material
Carton/Plastic/Metal/Plate/Tube/Stone/Cable/Electronic Components/Auto Parts/Industrial Chemical Packaging/Pharmaceutical Food /Gift Box
Ink type
Food grade, water-based, oily, weak solvent, solvent 42m ink cartridge, large-capacity ink bag continuous ink supply system
Ink color
Black, white, red, yellow, blue, green, invisible, UV (food grade inks of various colors)
Ink cartridge chip
RF|D non-contact chip, automatic identification of ink parameters and recording ink remaining
operating system
Embedded Linux operating system
Main hardware
US TAM3358 industrial grade CPU, US Xilinx Spartan6 industrial grade FPGA, T|J dedicated ASC module
Communication Interface
USB, RS232, TCP/P network port (support network remote centralized control management, symmetric heavy machine / conveyor / pager/ packaging machine / ERP database / drug monitoring code / anti-counterfeiting traceability system)
External interface
Optical Eye / Encoder / Alarm Control Input / Serial Number Transmission / External Serial Number Reset / External Serial Number Update / External Sneeze Information Selection / Flip Reverse Control / Nozzle Port
Nozzle installation
Separate sprinkler installation can be seamlessly assembled with double nozzles, separate nozzles can be separated separately (1.8m link cable) can be equipped with nozzles with anti-collision components
Support language
Support more than 40 countries and regions (Chinese / English / Arabic / Russian / French / Vietnamese / Korean / Burmese /Indonesian / Hindi / Portuguese / Japanese / Spanish / Italian...)
Power parameter
Power adapter 100-240V AC input 30∨4A DC output
Machine material
Industrial grade standard protective body (aviation grade aluminum / industrial grade stainless steel)
Machine specification
Host 202mm*119mm*61.2mm, nozzle group 112mm*79mm*103mm
working environment
Temperature 0-45 ° C / humidity 30-70% Rh
SEND INQUIRY NOW

the truth behind inkjet printer

E-mail: sale01@sy-faith.com
Whatsapp/wechat:0086 13080716768
Website: www.sy-faith.com

Hey guys! Today I’m going to show you about the truth behind inkjet printer. Watch more to learn about the truth behind inkjet printer don’t forget to like and subscribe this video!

Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production, sales and service. It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person  team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
    The company's products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States, Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers.
  The company's philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology's vision is to become the most professional, caring and trustworthy enterprise in the printing industry.

BE MY FRIEND:
Check my website: https://www.sy-faith.com
Add me on Facebook: https://www.facebook.com/306879870025955
Add me on Youtube: https://www.youtube.com/channel/UCzjMa7hc5TERKFm-U-kH0Cg
Add me on Instagram: https://www.instagram.com/faithlaser/

the truth behind inkjet printer

please contact us immediately if you are interested in.

View more:

warning! inkjet printer revealed: here's what you NEED to know : https://youtu.be/QuahJPkXemM

#truth#behind#inkjet#printer#Shenyang#Faith#Laser#ShenyangFaithLaser#bestinkjetprinterforbusiness#directtogarmentprintercheap#3Dprinterproject#inkjettransferpaper#uvinkjetprinter#dodgesprinter#bestinkjetprinter#Printablehtvinkjet#epsonl805printerterycomeout#3dprinterMGN12#datecoderinkjetprinter#best3dprinter2019

Product Details
Company Profile
Product Introduction

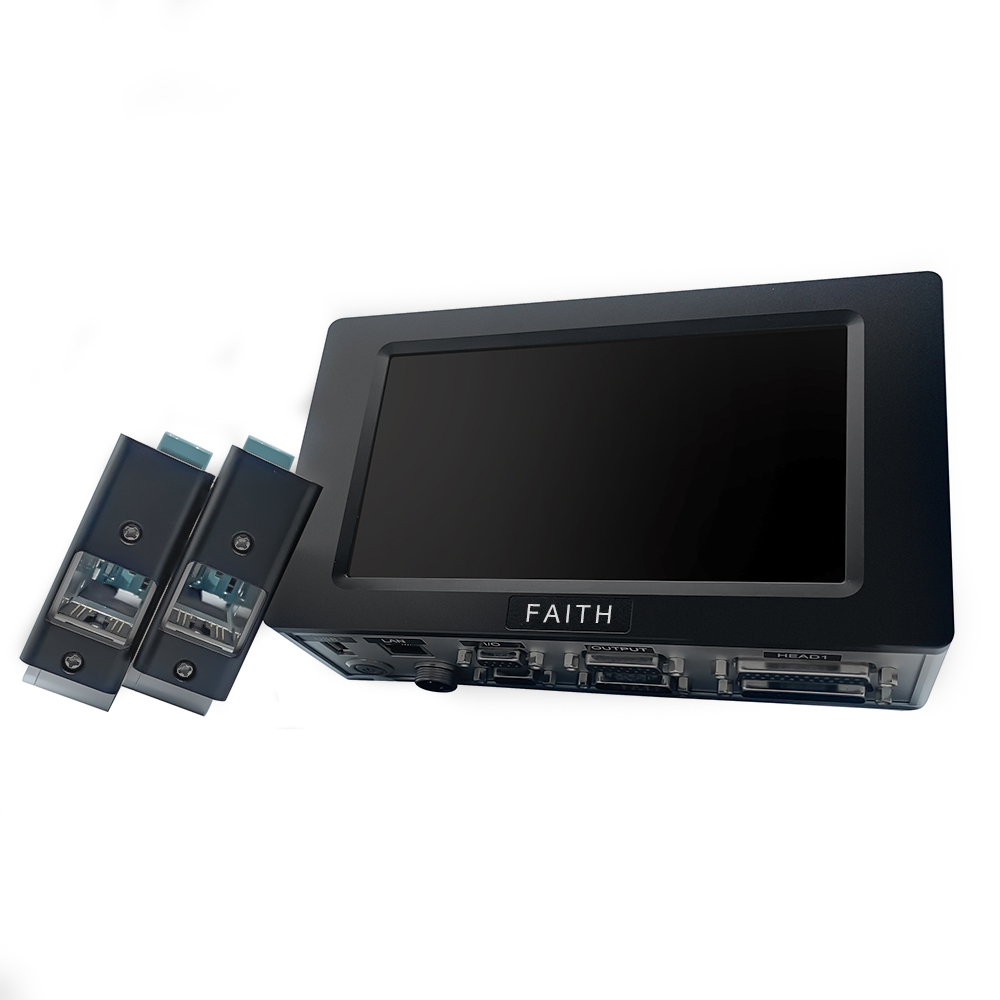

KD210 online inkjet printer, with efficient and flexible dynamic database printing function, supports traceability and anti-counterfeiting system, dynamic database real-time high-speed printing, supports 40 multi-language, powerful GS1 two-dimensional code and bar code function, to meet customer's multiple variable code application requirements . It is widely used in the packaging industry, pipes, profiles and other professional production lines, and is committed to solving your printing problems in an all-round way and providing better services.
Product Details

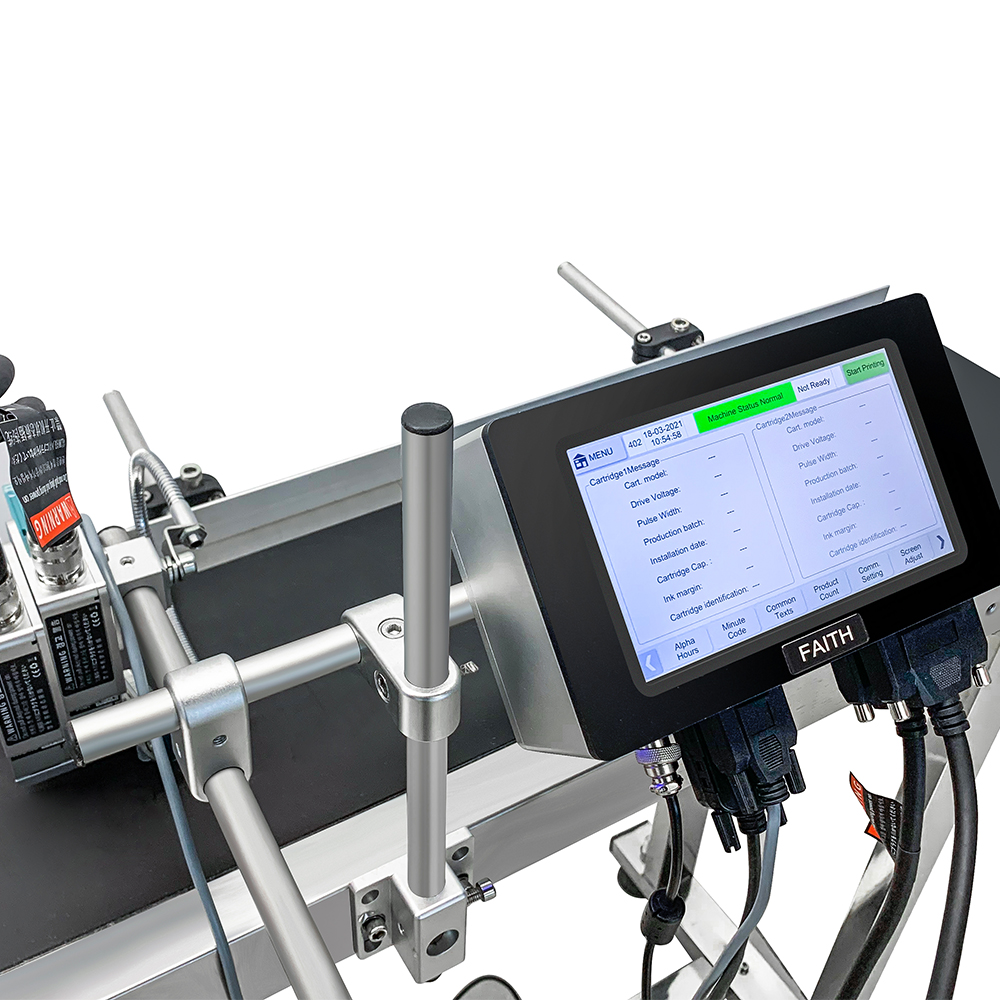

Adjustable bracket, effectively guarantee the printing position and printing distance, to ensure accurate coding.
Aluminum alloy body, strong heat dissipation suitable for long time operation.

According to product printing requirements, choose equipment suitable for printing height.
Speeding experience built-in imported chip, responsive.

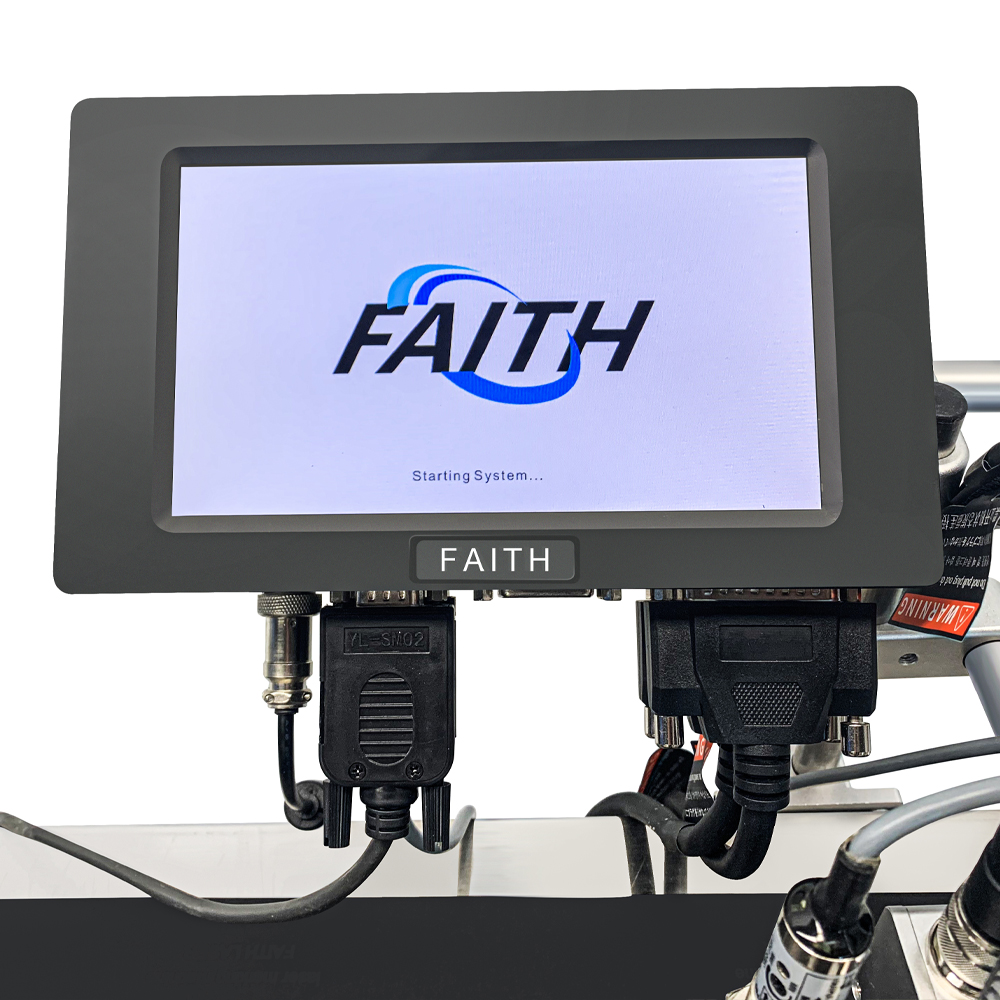

With a 7-inch display High sensitivity UI interface design, easier to operate quick response.

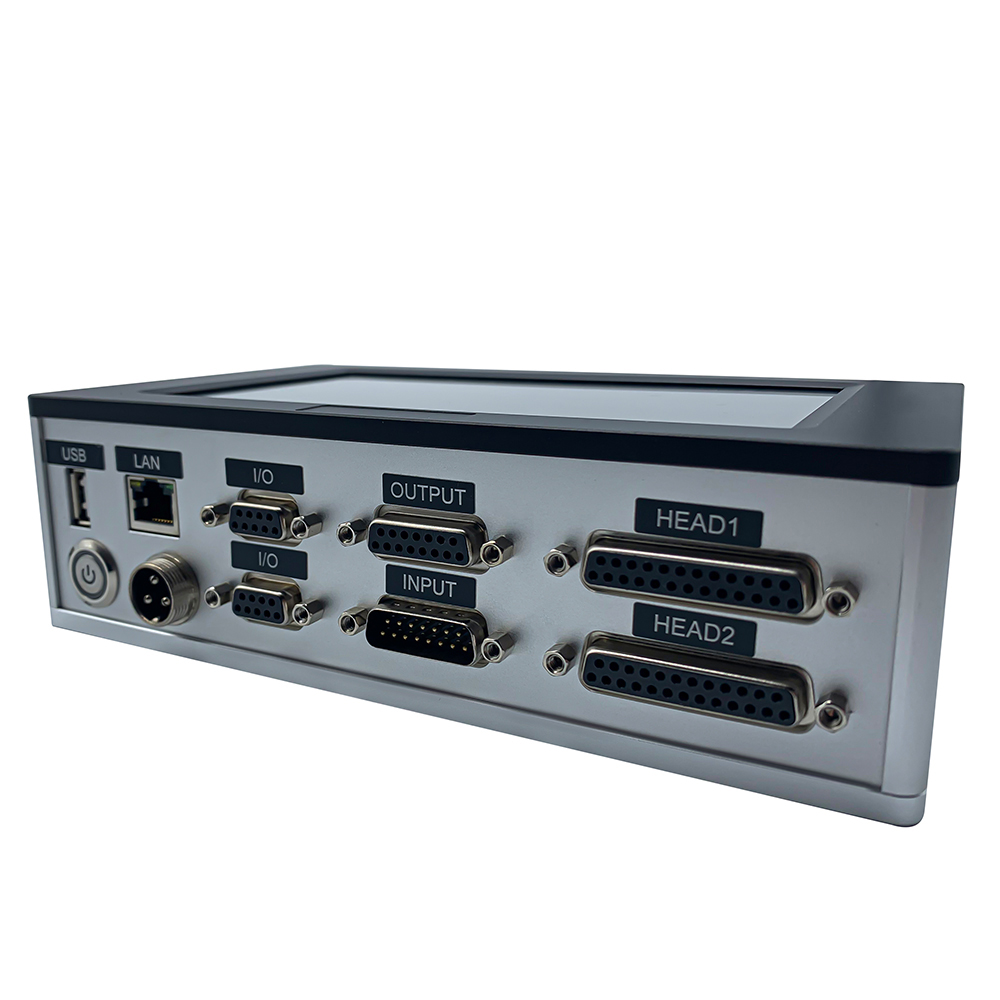

Three kinds of data interfaces, four kinds of information transmission
Interface type: USB, RS232, RJ45.
Users can store picture information (.bmp), text information (.txt/.csv/.xlsx), database, and EXCEL form in a U disk and connect to this machine to print directly.
Smooth operation and stable performance
The product adopts American Texas Instruments AM3358CPU. There will be no lag during use.

Speed tuning:Conveyor speed adjustment knob
Photoelectric sensor:Photoelectric sensor coding, with assembly line to realize automatic work, improve work efficiency
USB interface:USB port on the side of the machine. Can be connected to U disk to import graphic LOGO QR code and other content
Synchronous wheel:Can achieve fast coding without deformation
Precision nozzle:Brand new aluminum alloy nozzle, high strength corrosion resistance and equipped with two sizes of 12.7mm25.4mm
Wear-resistant thickened conveyor belt:Conveyor belt made of high-quality material, wear-resistant and anti-damage

Anti-counterfeiting trace data printing
It adopts American TI Company AM3358 industrial grade high performance CPU and American Xilinx Corporation spartan6 industrial high speed operational FPGA.
Print engine uses ASIC chipset for industrial grade TIJ inkjet printer.
PCB adopts anti-interference industrial grade solidstate electronic components SMT manufacturing process.

More powerful software system
With architecture stable and efficient industrial control embedded linux security intelligent operating system.

Product Features

Specilaze in IC for around 11 years

100% Tested before sale

Cooperate with over 35 famous brands from domestic and international market

Abundant inventory and short lead time about 3-7 days

1 Year warranty

Competitive and reasonable price
Company Advantages
10 YEARS FOCUS ON CODING MACHINE
200000 GLOBAL USERS
3 YEARS AFTER-SALES SERVICE
200 PERSON TEAM
Our services
OEM or ODM are acceptable.
We accept small order/trial order for customer to check whether the products is suitable for the market.
Will be available online almot in 24 hours service for your esteemed company.
We are glad to hear from you soon and to start a business relationship with your esteem company.


Basic Information
  • Year Established
    2010
  • Business Type
    Factory
  • Country / Region
    China
  • Main Industry
    Printing Machine
  • Main Products
    Tij/Cij inkjet printer
  • Enterprise Legal Person
    Stella
  • Total Employees
    101~200 people
  • Annual Output Value
    2000000USD
  • Export Market
    Chinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
  • Cooperated Customers
    Coca Cola,Calbee,Kraft,Lay's,Perfetti,etc.
Company Profile
Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production, sales and service. It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.     The company's products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States, Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers.   The company's philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology's vision is to become the most professional, caring and trustworthy enterprise in the printing industry.
