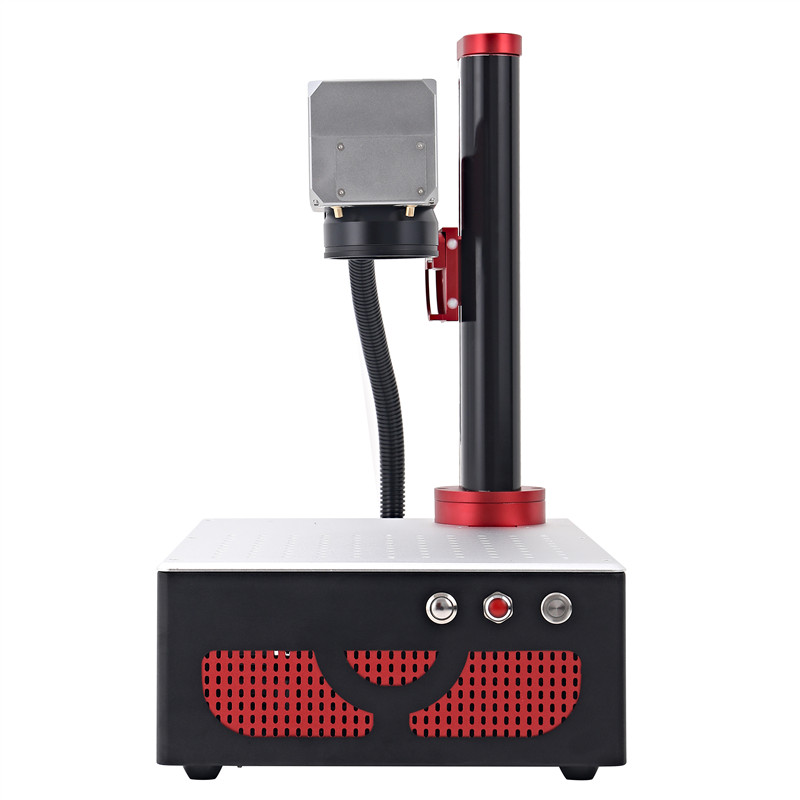

Name: Fiber Laser Marking Machine
Size:830*540*450 mm
Laser wavelength :1060 nm
laser power : 20 W or 30 W or 50 W
Laser type : Pulse or continuous
Marking depth : Up to 0.5 mm depending on material
Marking speed ≤7000 mm/s
Minimum characters : 0.15 mm
Minimum line width : 0.012 mm
Repeatability : ±0.002
Marking range Standard configuration:100 mm x 100 mm
Operating life Laser operation > 100000 hours
External dimension : 450 mm x 540 mm x 800 mm
weight 25 kg
Worktop 320 mm x 200 mm 30 kg
Lifting height Lifting 550, printable work piece height less than 280 mm.
Cooling system : Built in air cooling
operating system : Win XP / Win 7
Graphic conversion : Provide CAD, CorelDRAW, CAXA file conversion
Use environment Temperature: - 20 ° C- 45 ° C, relative humidity 80%

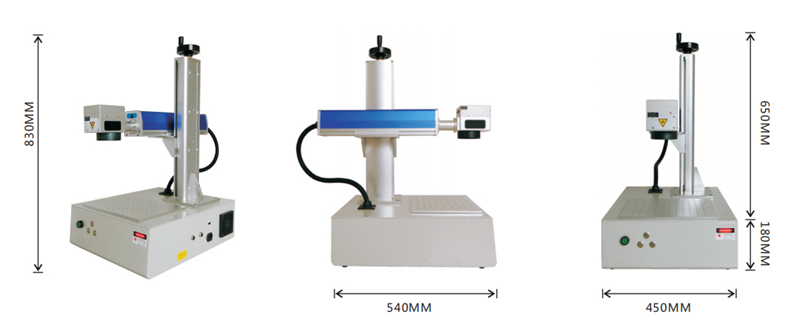

Size chart
This fiber laser marking machine PL130 have Flexible Design, Convenient Printing Marking process: through the evaporation of surface materials to expose the deep materials, or through the chemical and physical changes of surface materials caused by light energy to "carve" traces, or through the burning of some materials by light energy to show the required patterns, characters, etc. This machine can print numbers, Chinese characters, English letters, graphics support automatic coding, serial number, batch number, date barcode, QR code, automatic skip number, etc.
Support multiple file formats
Fiber Laster Marking Machine Support PLT, PCX, DXF, BMP and other files, and directly use SHX, TTF libraries. Support barcode font, set automatic serial number, date and time according to production needs.
Red light preview
The red light produces a rectangular frame, which clearly indicates the specific range of printing, so that what you see is what you get
Connect rotator
The Fiber Laster Marking Machine can be connected with a rotator to print cylindrical or arc objects, further expanding the scope of use
Red light focusing function
Through the visual adjustment of red light, the maximum focal length can be precisely located, so that the laser beam can reach the maximum value.
High quality laser & High speed galvanometer
The Fiber Laster Marking Machine adopts Chinese first-line light source brands raycus and Max, as well as international famous brand IPG light source, to ensure the printing quality.The service life can reach 200000 hours. The machine adopts sinogalvo high-speed galvanometer to ensure the stability of printing process
Flexible match of field lens & Connectable rotator
The Fiber Laster Marking Machine adopts the Singapore wavelength high transmittance galvanometer.The printing range can be adjusted from 12 * 12cm to 40 * 40cm by changing galvanometer The machine can be equipped with optional rotator to print the arc object
Packing & Delivery
package weight 45kg After payment is complete, your order will ship within 3 days We use express UPS, DHL, EMS, FedEx, and the package will reach your hand in 3-12 working days.
Certificates
1.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2.How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3.How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
4.When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
5. If some problems happen to this machine, what should I do?
We provide three years machine warranty. During the three-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
6. What’s consumables of laser marking machine?
It does not have consumable. It’s very economical and cost effective.
7.What’s package, will it protect the products?
We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
8.Do you have any certificates?
Yes, we have ISO, CE and Rohs
