• Product Details

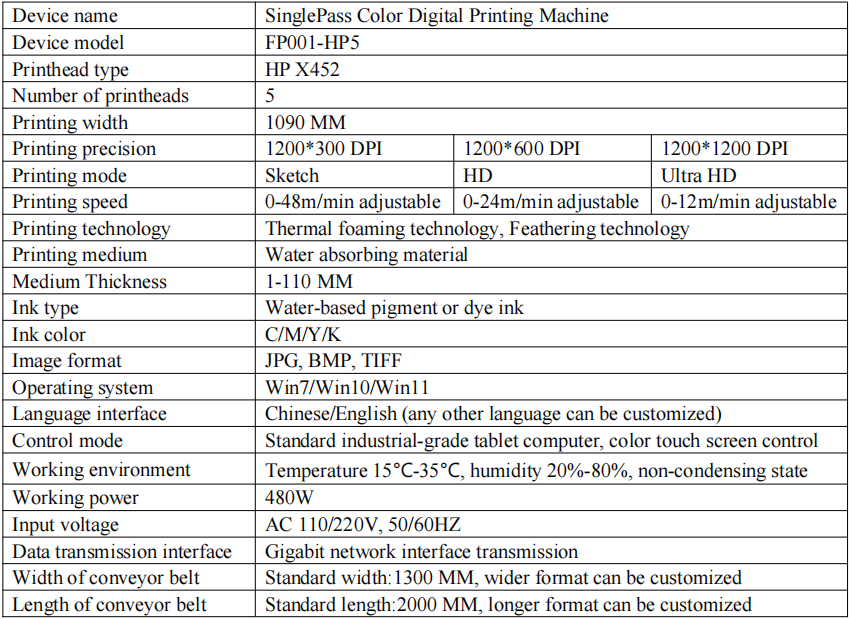

Technical Parameters:

Water-based Ink:

There are two kinds of water-based ink, one is water-based pigment ink, and the other is

water-based dye ink. The two are very different. The water-based pigment can resist

ultraviolet radiation, and it is fadeless and waterproof. Water-based dye can't resist

ultraviolet radiation, and it is not waterproof, which will fade over time.

* These two inks are selected according to your different needs. If you require the ink

to be waterproof and want to keep it for a long time, choose water-based pigment

ink. If you do not require the ink to be waterproof and just want to keep it for a short time,

choose water-based dye ink.

* Water-based ink has 4 colors: C, M, Y, K ( Cyan, Magenta, Yellow, Black)

* One liter of ink can print 60,000 pieces of A4 paper with 5% coverage

Core Hardware Configuration:

1、Printing system control circuit board.

Core processor. Adopting the internationally renowned American brand Xilinx industrial arade processor chip.

Core storage module: Adopting internationally renowned brand American Micron DDR4 memory chip.

Data transmission module: Adoting intemationaly renowned American microchip MICROCHI gigabit network industrial grade chips.

2、Power module.

Adopting internationally renowned brand Taiwan Mingwei power module.

3、Signal transmission module.

Using gigabit network cables to transmit and print, ensuring the stability and timeliness of big data signal transmission.

4、Machine frame structure.

Adopting internationally recognized European standard industrial grade, high-strength alloy profiles to ensure the stabilityof the machine architecture.

5、Fasteners for various parts of the machine.

Adopting 12.9 grade high-strength and industrial grade accessores to ensure the stability of various connecting parts of the machine.

Printing Medium

*Type of Printing Medium:

Water-based ink is used on water-absorbing material, such as on cartons, corrugated

box, pizza box, non-woven fabric, sack, handbag, canvas bag, cotton bag, wood board,

paper, disposable paper cups, egg boxes, etc.

*Thickness of Print Medium:

0-110 mm. The print head can move upward and downward to meet different printing



The software is developed by ourselves, and our factory can upgrade your software by

remotely controlled in the future.


Machines of different models have different dimensions and weights. The packaging

size of the machine with an 80cm conveyor belt is 215*115*105 CM. The weight is

about 250 KG.


Two years warranty, not including consumables such as print head and ink.

Print Media Type

Water-based ink can be printed on the surface of water-absorbent materials, such as corrugated boxes, cartons, pizza boxes, white cardboard, kraft paper, paper bags, cardboard, non-woven fabrics, jute bags, canvas bags, cotton bags, disposable paper cups, egg cartons and other materials.
