Main features
1. Computer machines are integrated, no need to be equipped with laptop computers.   2. Equipped with ink curing lights for uv model, no restrictions on any material quality of fine picture, good color, waterproof protection of the sun protection more lasting, no need for waterproof treatment. 3. It can be folded and easily carried: cars, vans, SUVs can be carried without blocking, no cleaning, no life can be idle for 2 months.

Epson TX800 printing head

One printing head can print 15000 square meters

High resolution printing


360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi

8 core CPU,8GB RAM

High speed processor with 8-core CPU,Computer machines are integrated, no need to be equipped with laptop computers.

High quality UV ink

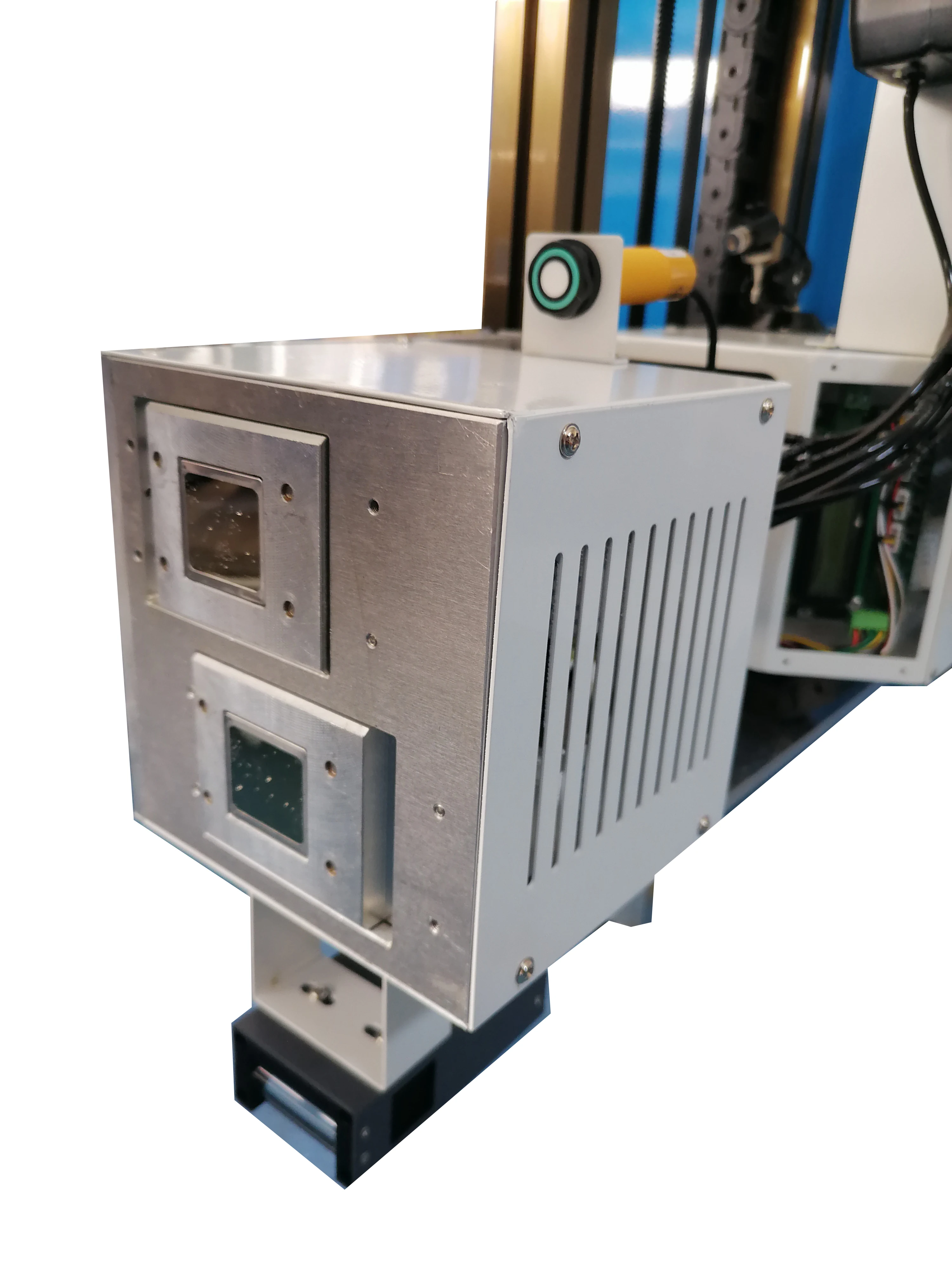

Equipped with ink curing lights for uv model, no restrictions on any material quality of fine picture, good color, waterproof protection of the sun protection more lasting, no need for waterproof treatment.
KD260 parameters
Printing software
Genuine professional printing software
Using ink
Special environmental protection organic water-based ink (waterproof, anti stripping)
Control mode
Wired / wireless printing
Transportation
(foldable)
Power consumption
No load 20W, maximum 250w
Surface tracking
Hyperbolic banner sensor, up and down bidirectional induction
Ink supply system
Positive pressure system single color single supply, 4-color ink bin one body
Print size
2.5Height × width, more than 2 meters can be seamless splicing
Construction noise
Standby < 20db, drawing < 70db
Supporting pictures
Photos taken by mobile phone / camera and Internet
Power requirements
Household electricity: 220 VAC or 380 VAC
Applicable media
White wall, ceramic tile, glass, metal, acrylic, paper, etc
Format of national film
include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF
Color drawing technology
Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery
technology for construction interruption
Print Resolution
360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi
Operating environment
-20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state
Storage environment
-21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state
operating platform
Windows xP/7/8/9/10
Certification qualification
Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification
Printing speed
PASS
M2 / h (M '/ h)
Fast mode
A
15
Production mode
B
10
Quality model
C
7
HD mode
D
5
External dimension
Machine scale mm); length 700* width 300* height 2600
Package size (mm): length 800*width 460*height 2700
Machine weight
Machine 60kg (fuselage 30kg + 3 guide rails 30kg)
Gross weight 115KG in wooden case
Key components
Nozzle specification
Epson 10 generation high precision printing nozzle 2
Electric machinery
3 Imported intelligent servo motor + reducer
main board
8Core high speed CPU, 4GB memory, high speed USB 1o
Wall detection
2Nano distance detectors
level
Imported precision level
Power failure alarm
Real time power failure alarm system
UPS power supply
Super uninterruptible power supply with 3 hours of power failure
Laser positioningLaser positioning
Precise infrared laser positioning system
Shaft guide
High strength precision railway track, 4 sections, 1.5m, 6m in total
Shaft guide
Imported linear drive module
Ink supply technology
Positive pressure system ink supply, need to draw ink
Gift Gallery
Free 2T Library
Language
Chinese / English (other languages can be customized)
Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail.
